Rovers North

Hoop Set Full Galvanized For 109 Series

Model #: PLF549

ProLine Part

Typically ships in 9-20 business days
We will contact you with a competitive freight charge prior to your order being processed.

Replaces 332951 RNF549
Replaces EXT262-2

Price: $899.99

Qty:

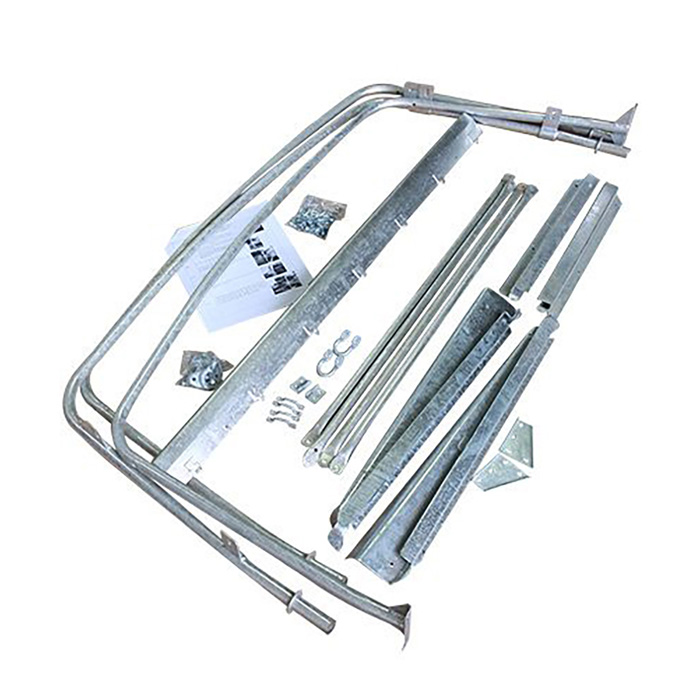

The complete hoop set for 109 full canvas tops Series II - III. The set includes mounting hardware. Includes everything needed to convert your 109 to a soft top except the top and vertical door seals for front door tops and the Rope Hooks for the body sides (301328). Hot dipped galvanized finish.

Included:

Header Rail
Drain Channel Door Tops (LH & RH)
Drain Channel Door Posts (LH & RH)
All Hoops and Tie Bars necessary for a full soft top hood fitment
Corner Bracket for hoop set to the windscreen (LH & RH)
All fitment hardware needed for the hoop set component installation
Exploded Land Rover parts diagram and a good fitting guide included

Please also note that once you have removed your hard top you lose your top mounting brackets for seat belt fitting points. We recommend a Raised Seat Belt Bracket Set (RNA0016G) to replace this fitting. We do not recommend fitting any seat belts to a Hood stick set they are NOT strong enough for this job.

You will also need to remove the rear door and replace it with a tailgate.

Please also note that all main supporting hoop sticks are higher than the hard top, making the hoops on average around 3 inches higher than the center point of a hard top. Please check that this does not infringe on where your vehicle is stored prior to conversion.

Please Note: that these products are very large and do come under heavy freight

NOTE: DOES NOT INCLUDE DOOR SEALS - For the top front door seal use qty 2 of 395673 or PLC120 and for the rear vertical front door top seal use qty 2 of 395674 or PLC121
